A MACHINE CREATED FOR TRAINING

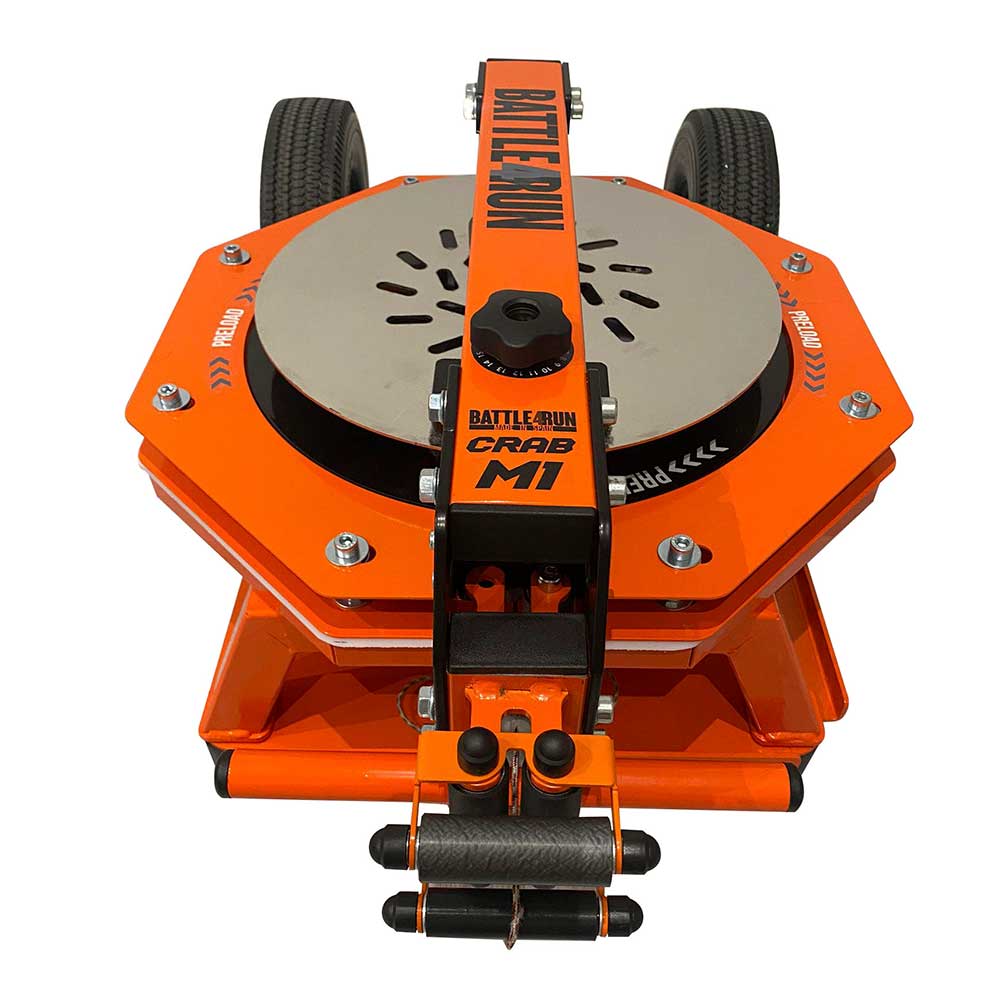

CRAB M1

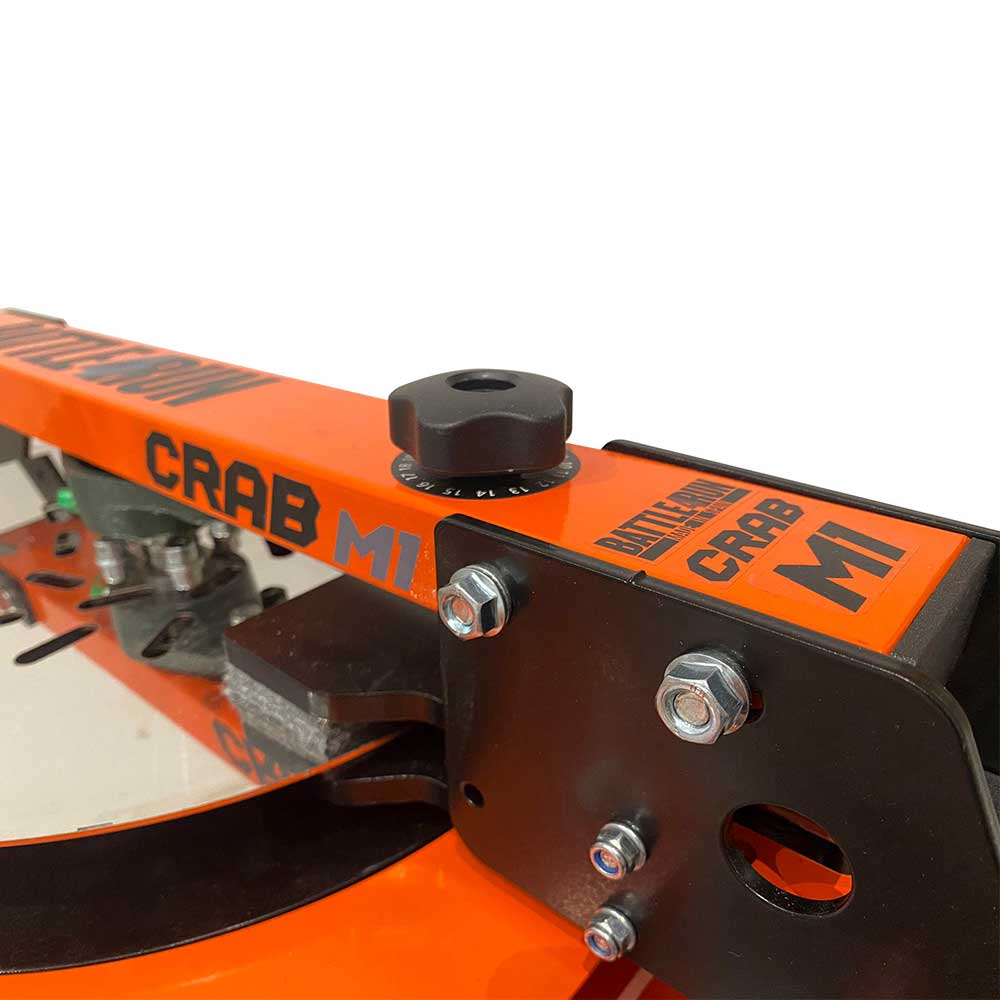

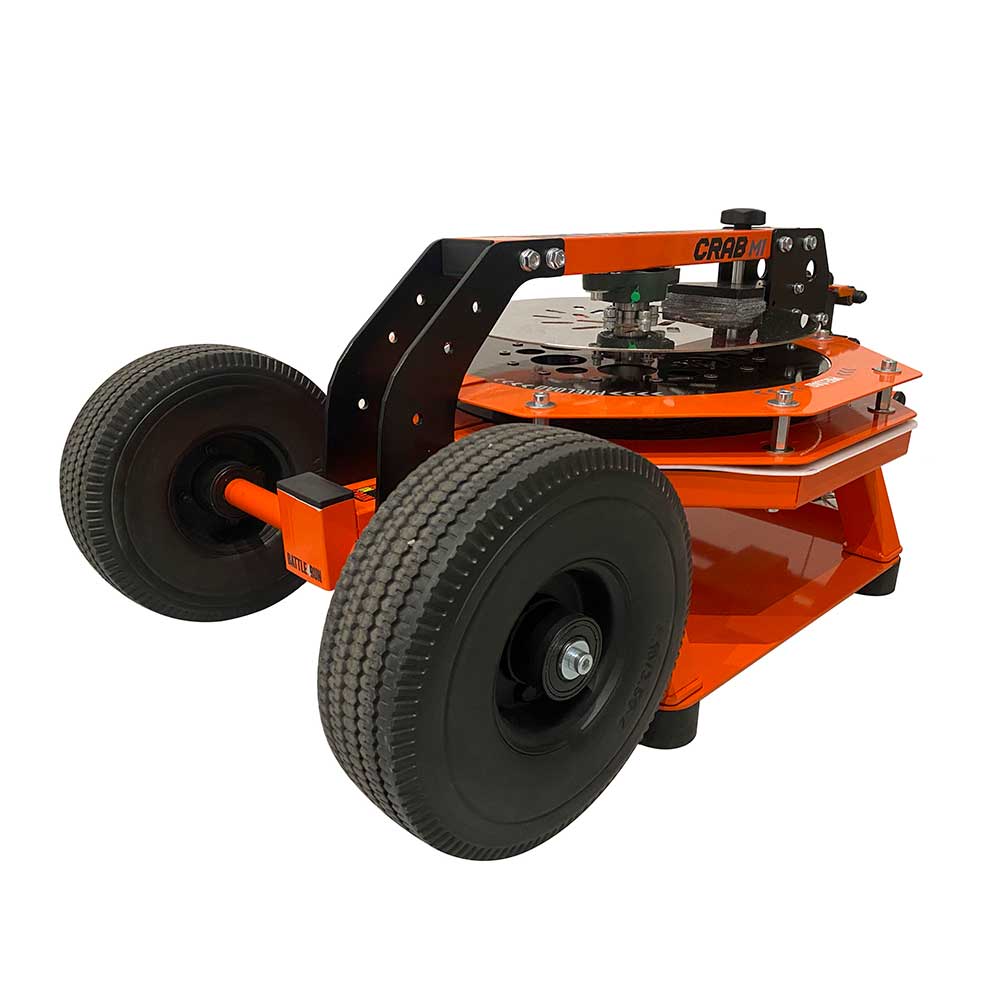

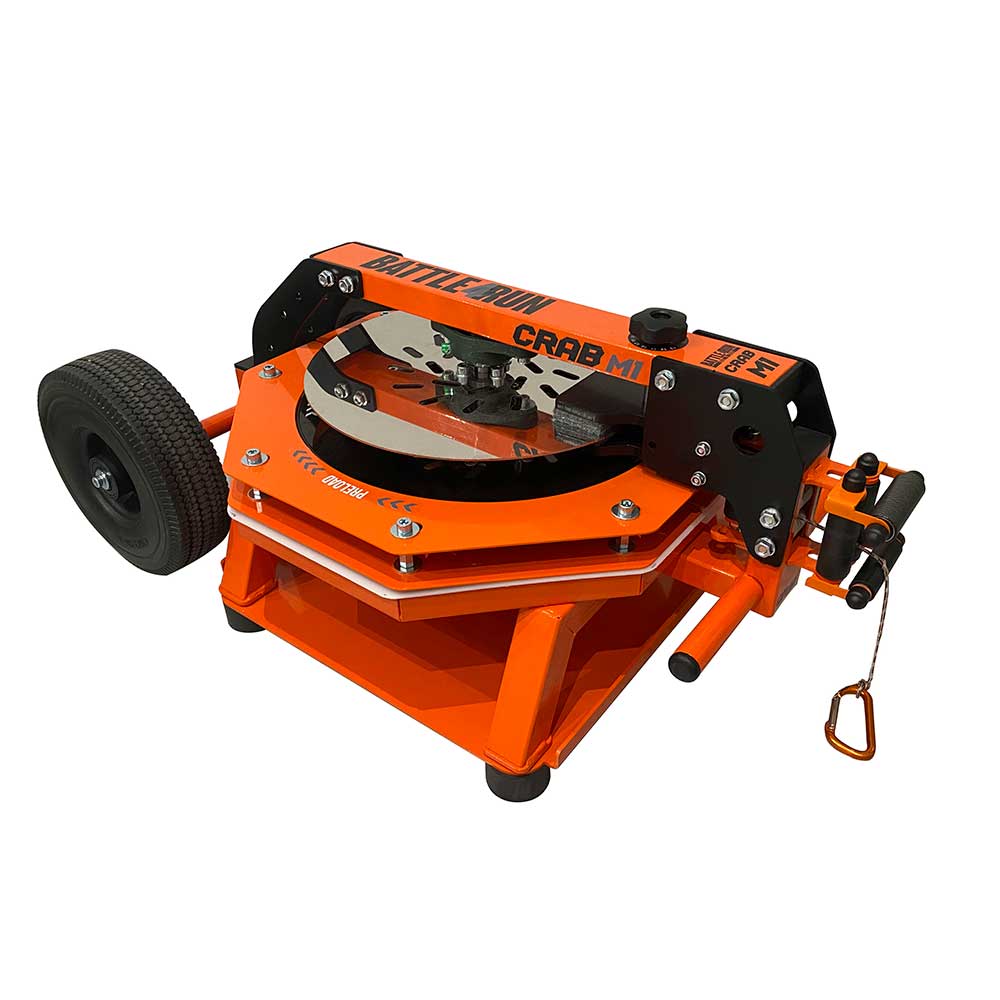

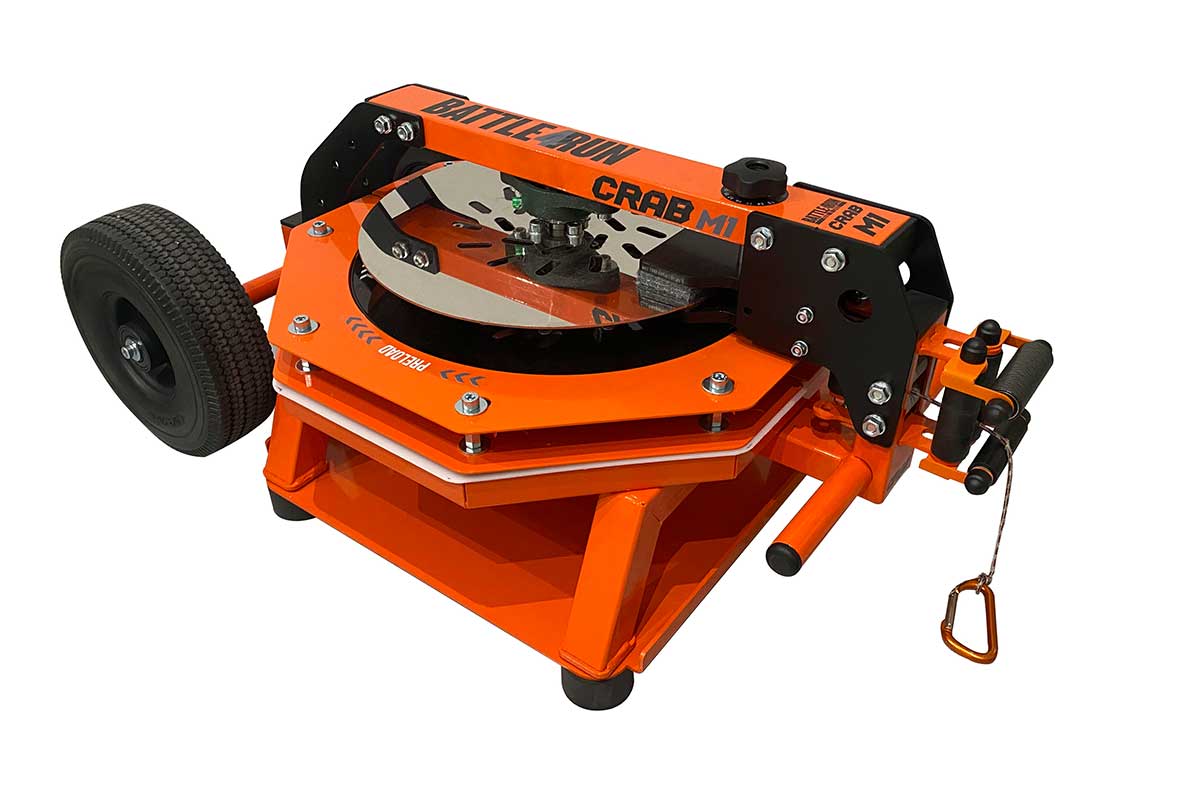

The CRAB M1 is a non-electrically powered machine, which means that it can be placed and trained anywhere without the need for a battery. The M1 version is equipped with a stainless steel disc brake that guarantees high mechanical performance. The braking power is controlled by a handwheel located at the top of the machine. With only two turns of the handwheel we can obtain a resistance during the whole displacement ranging from 4 to 40 kilograms.

TRANSPORTATION: its innovative design allows the CRAB M1 to be a light and easy to transport machine.

WORK RANGE: offers a range of resistances from 4 to 40 kg. These kilograms are direct traction. Compared to a traditional sled, they are equivalent to 1.5-3 times more depending on the friction surfaces.

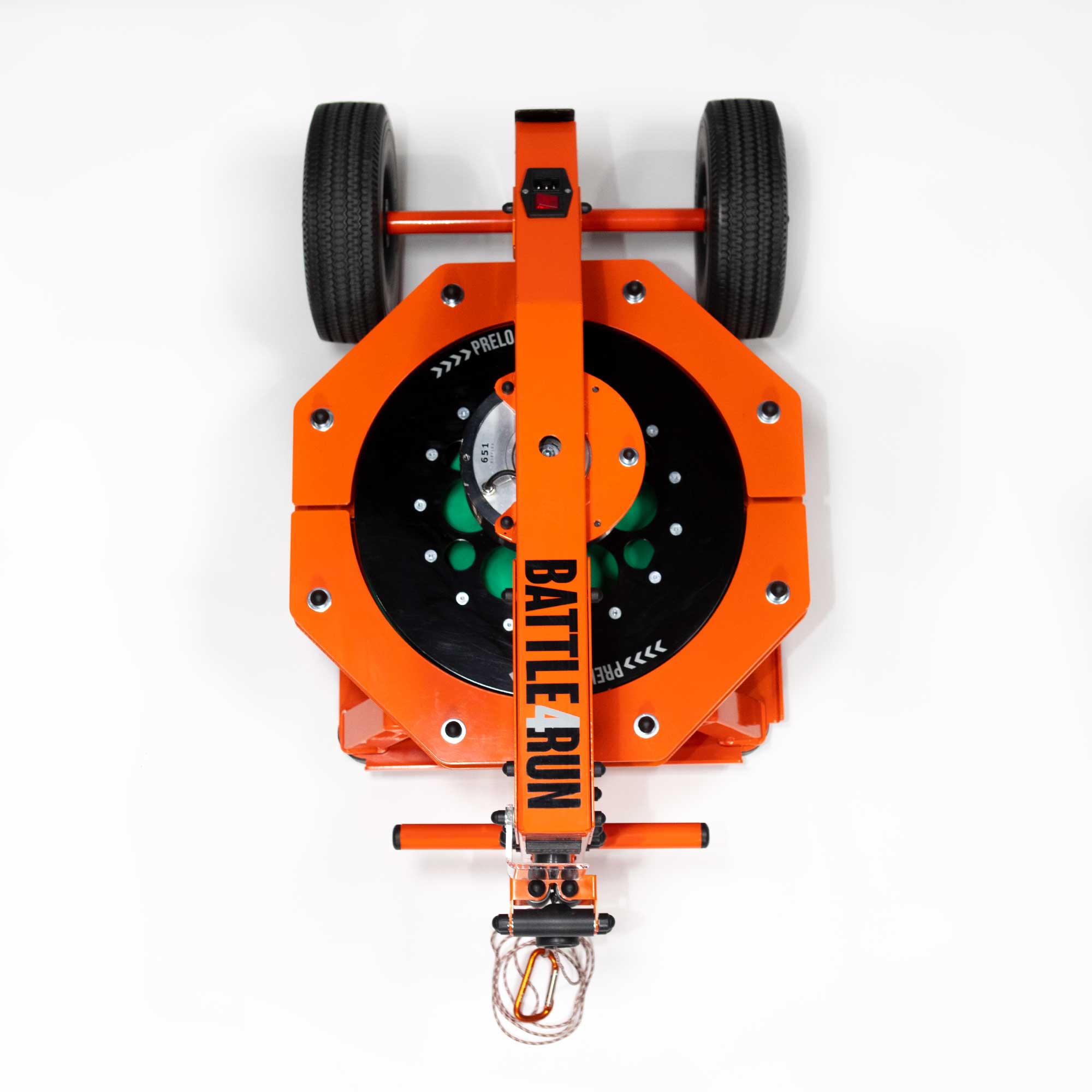

MECANICAL MOTOR: the M1 version is equipped with a stainless steel disc brake, which is braked by two brake shoes composed of a high-performance filter.

DISPLACEMENT: allows a displacement of up to 23 meters.

ACCESSORIES: includes harness.

For more information, our technical director will give you the necessary indications to start training with your CRAB M1 now.

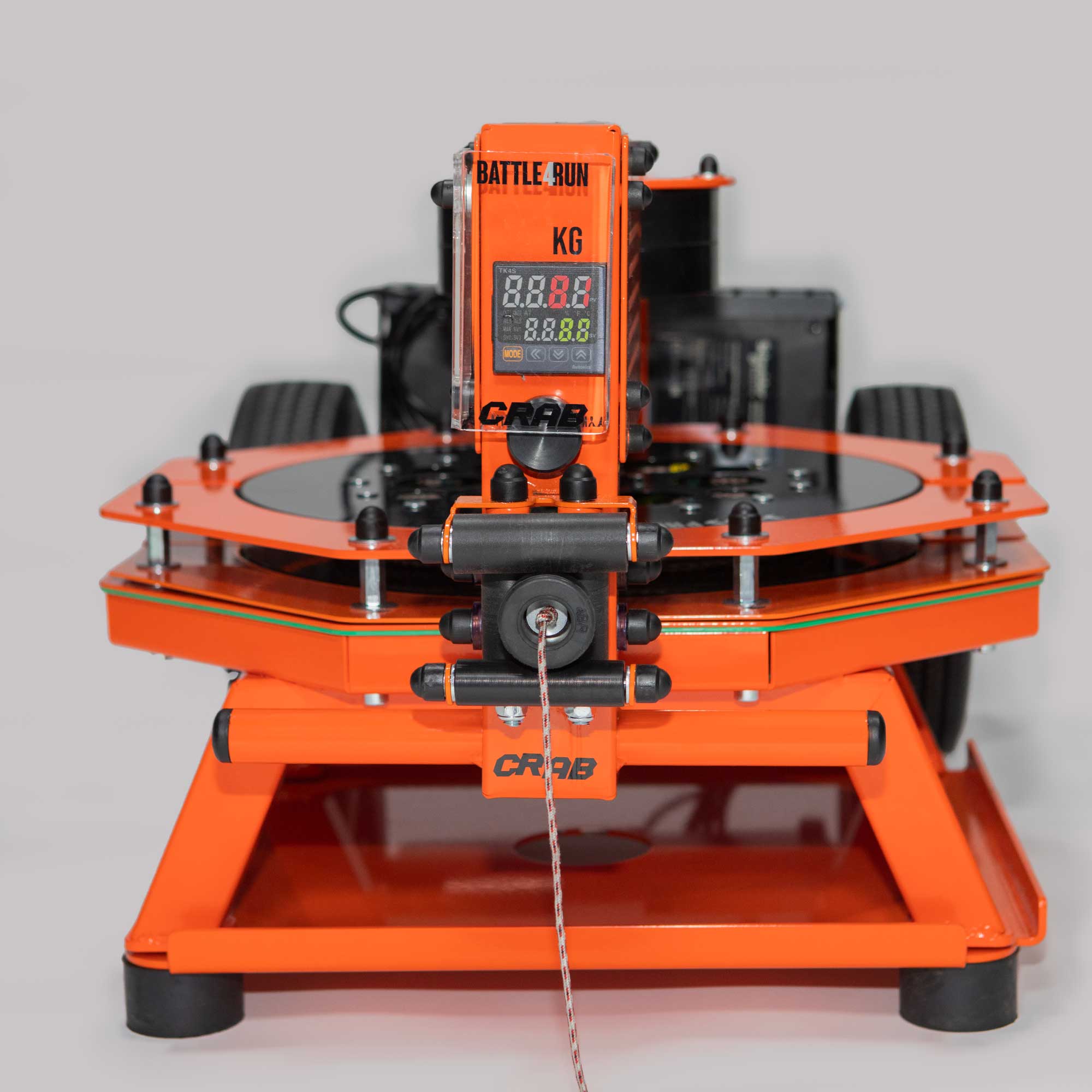

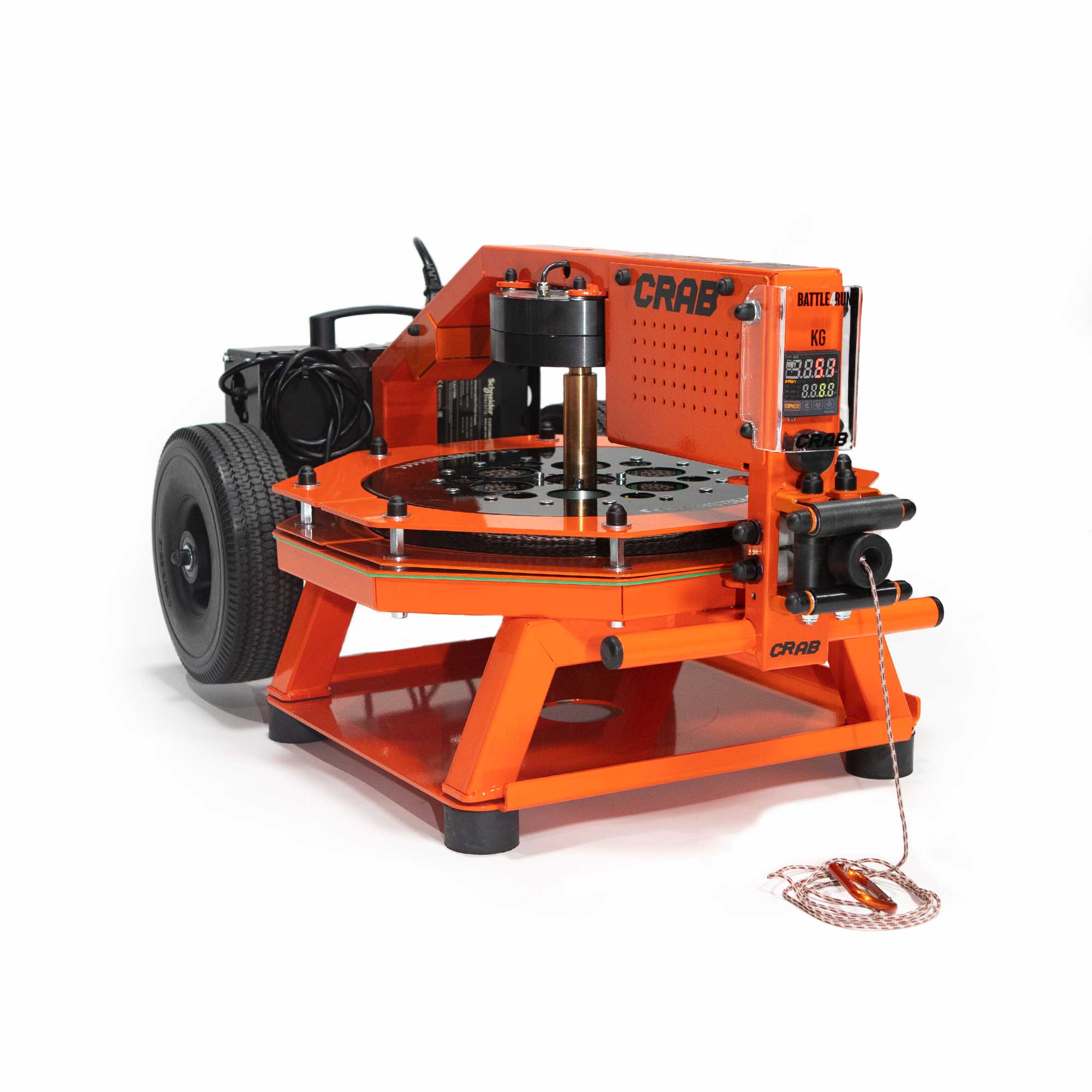

CRAB E1

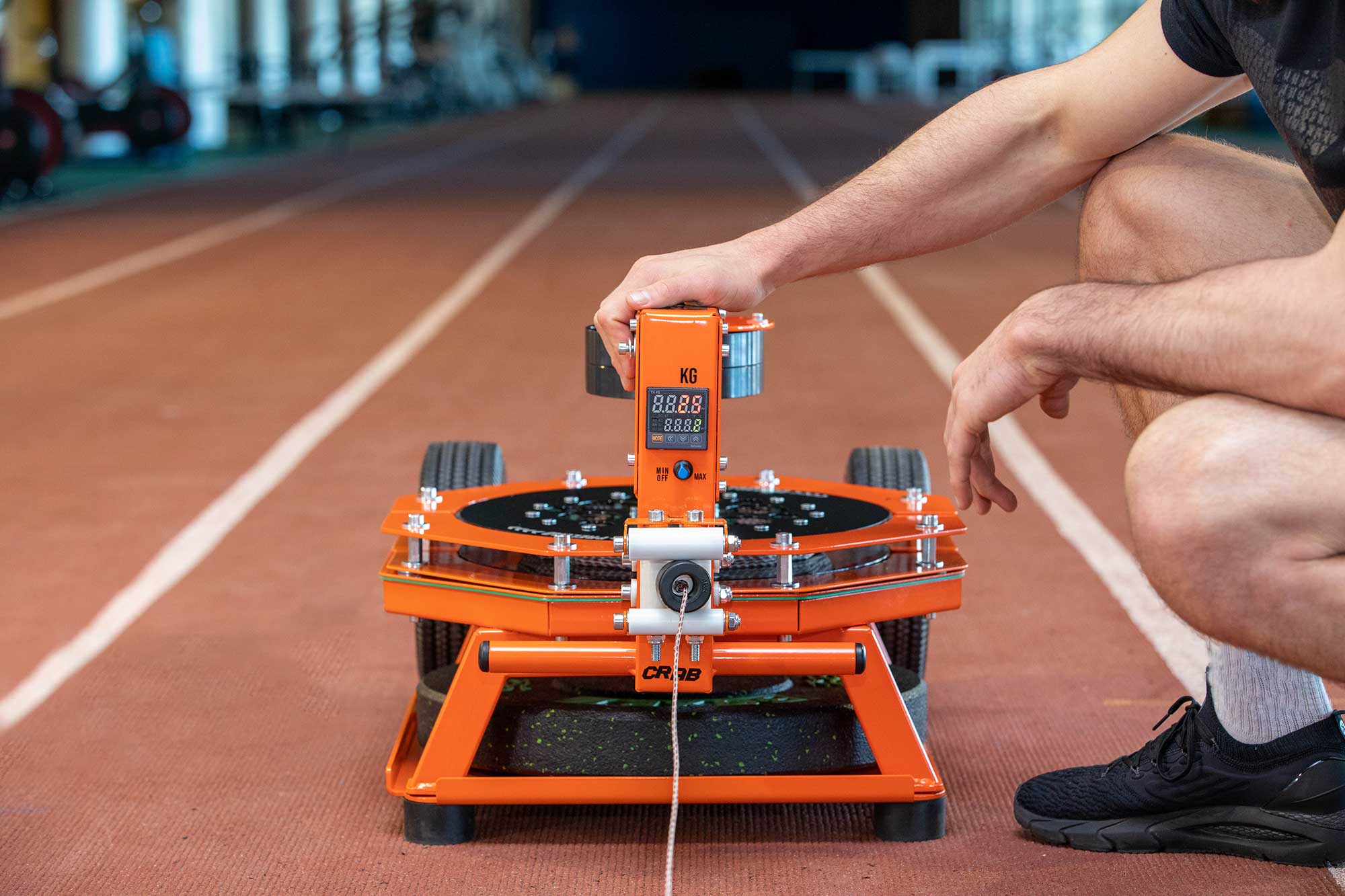

This electric version of the CRAB incorporates a high performance electro-brake controlled by a display that allows you to select and display the level of resistance chosen for each run or displacement.

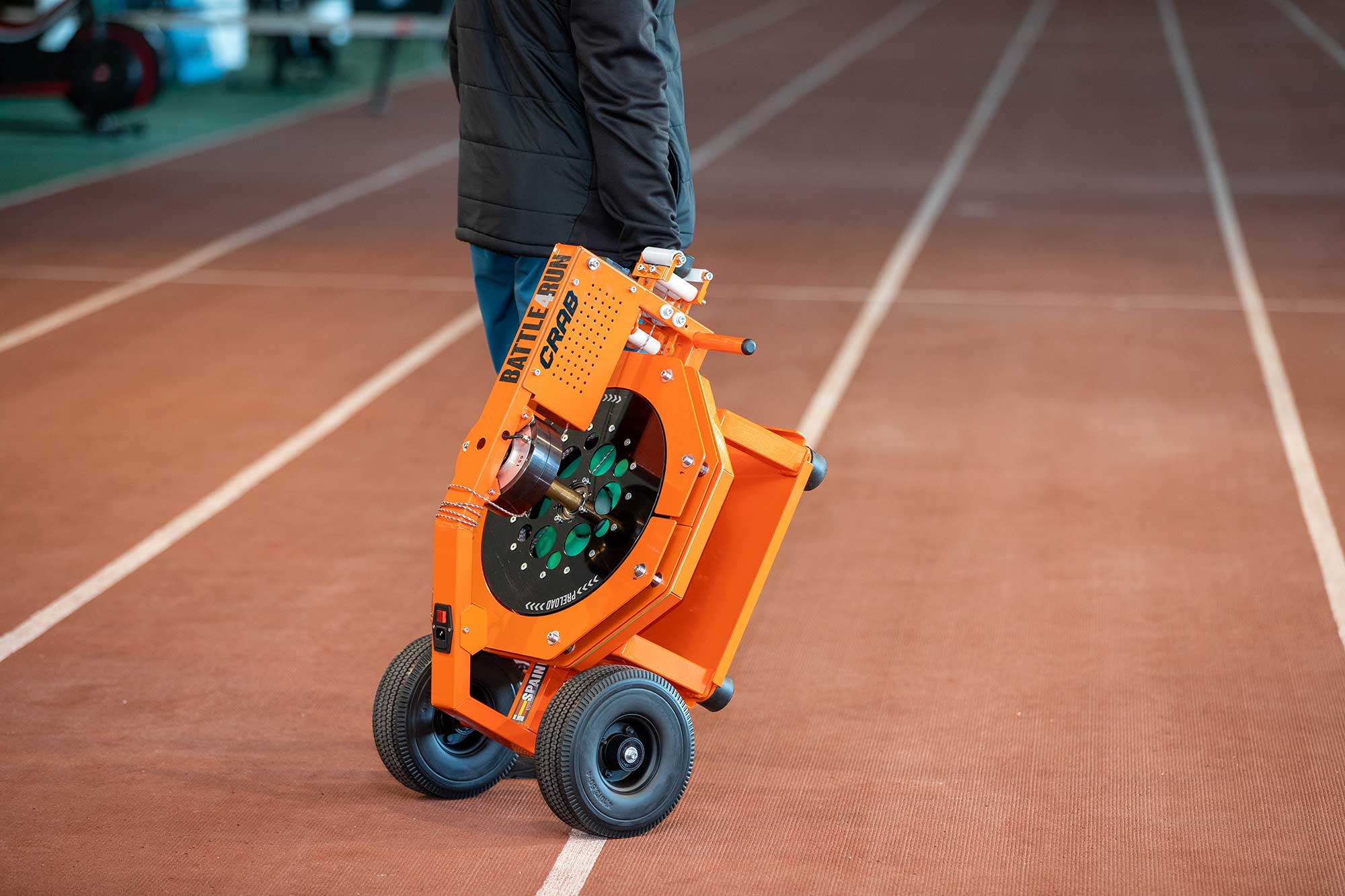

TRANSPORTATION: its innovative design allows the CRAB E1 to be a light and easy to transport machine.

WORK RANGE: offers a range of resistances from 3 to 60 kg. These kilograms are direct traction. Compared to a traditional sled, they are equivalent to 1.5-3 times more depending on the friction surfaces.

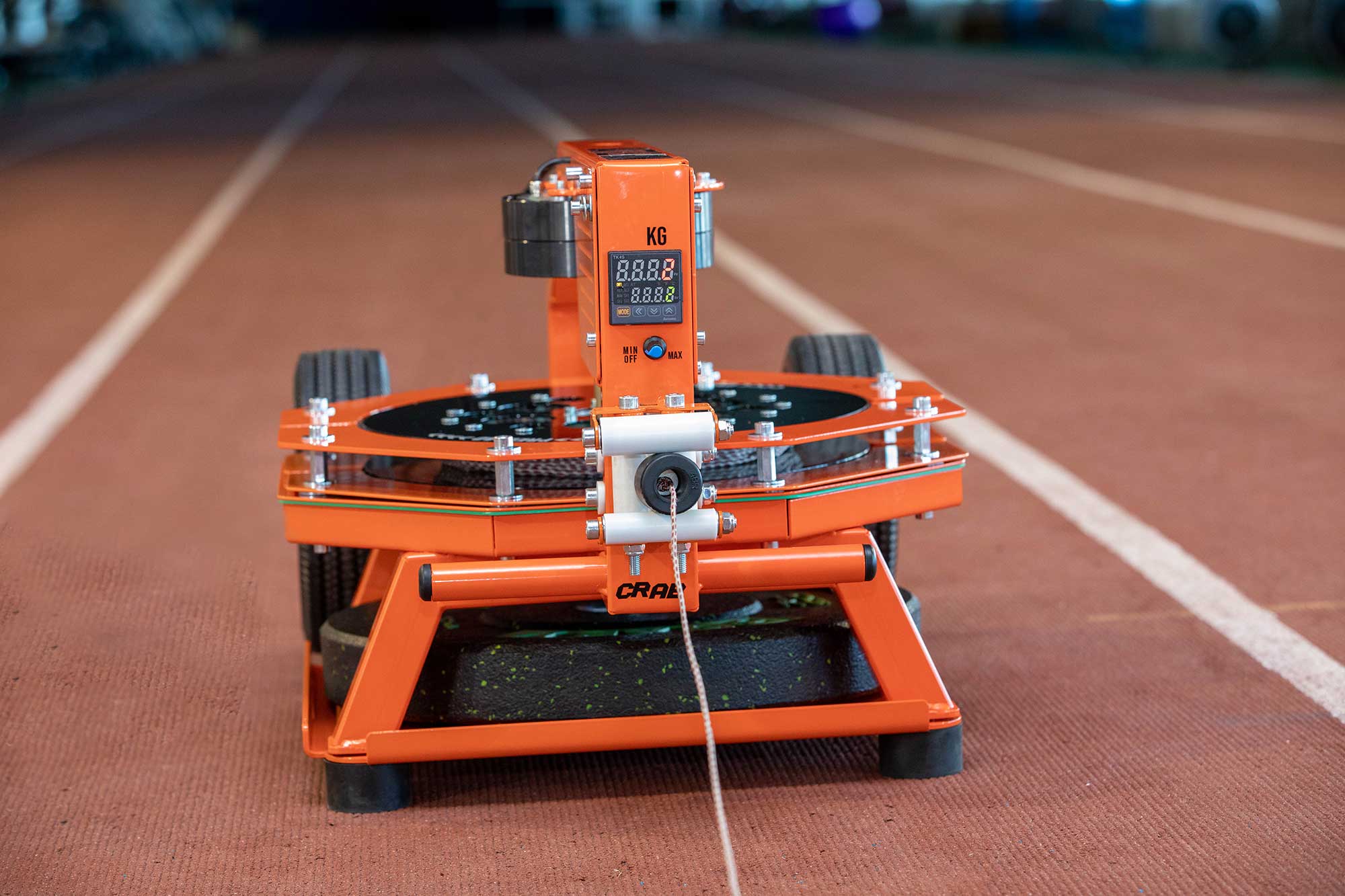

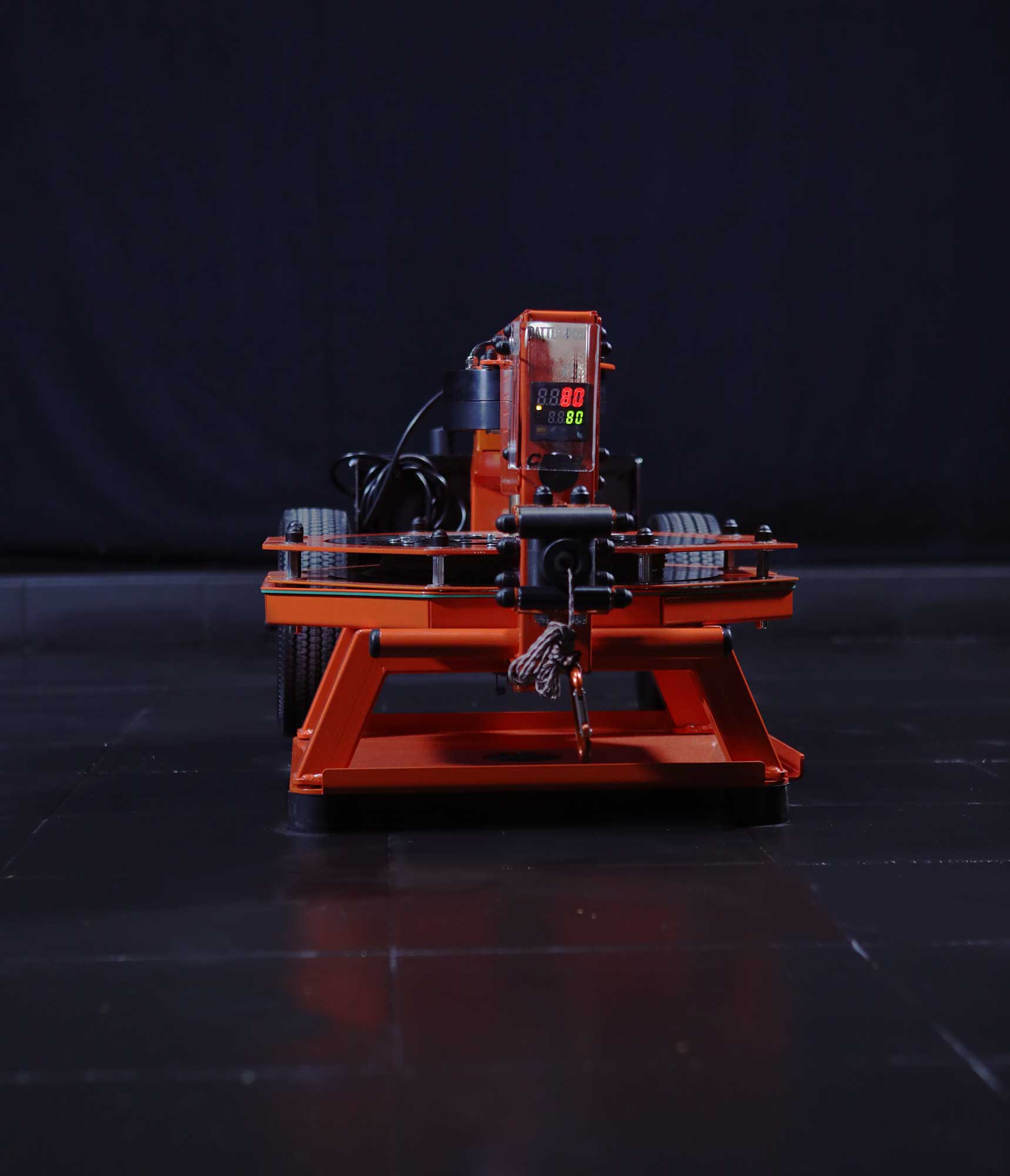

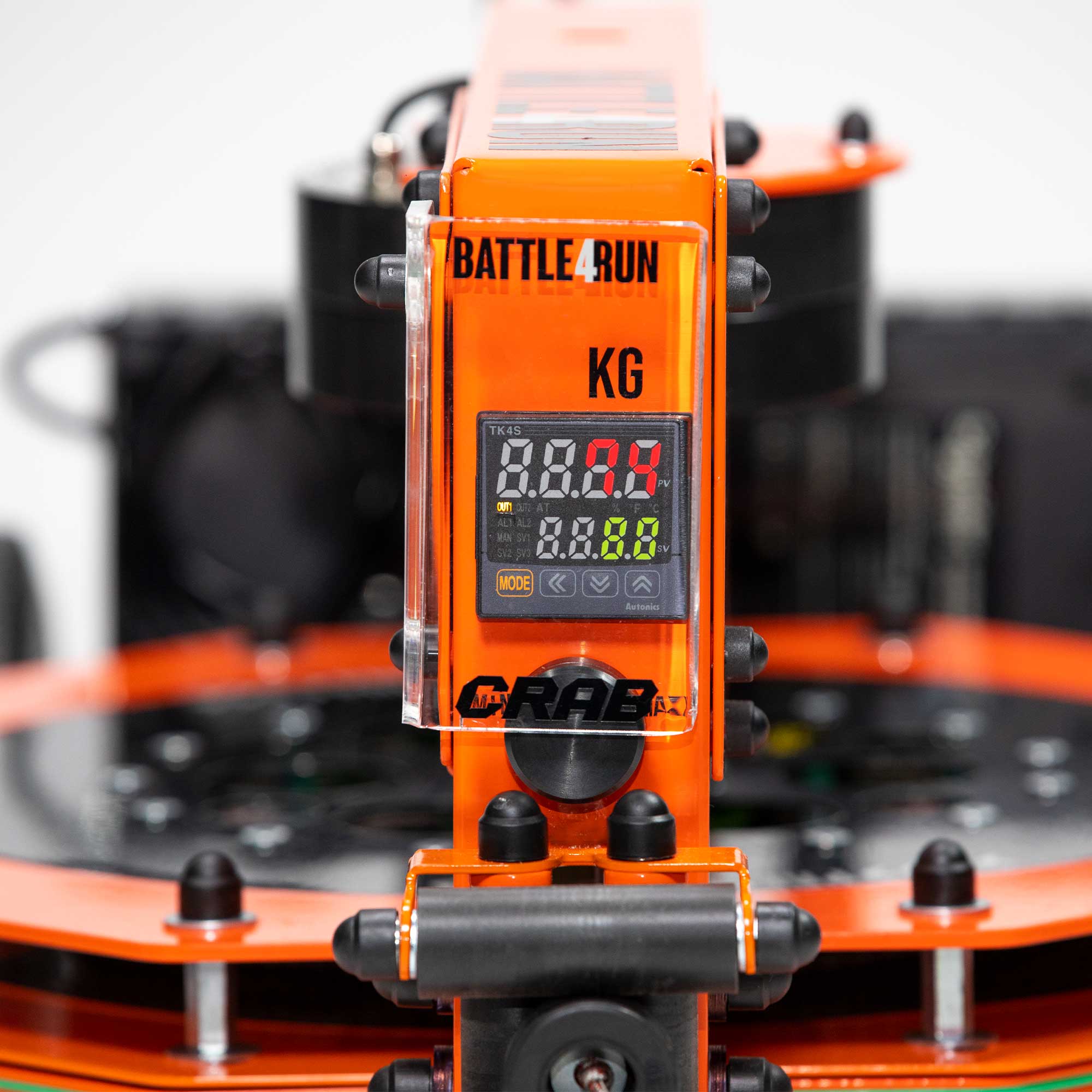

DISPLAY: has a display that allows the athlete to select the kilograms with which he/she wants to traction or displacement.

ELECTRIC MOTOR: CRAB E1 is equipped with a top quality electro-brake that guarantees a constant and lasting resistance over time throughout the rope’s travel.

DISPLACEMENT: allows a displacement of up to 23 meters with very good rope recovery.

ACCESSORIES: with optional battery, includes harness.

For more information, our technical director will give you the necessary indications to start training with your CRAB E1 now.

CRAB EV-1

It maintains the same characteristics as the CRAB E1 in terms of TRANSPORT, WORK RANGE, ELECTRIC MOTOR, DISPLACEMENT AND ACCESSORIES.
The CRAB EV-1 is an evaluation machine. It allows recording speed data for each repetition that the athlete performs. The data is controlled and displayed on a tablet.
Tablet/Screen 1: Control of the intensity in each repetition. Maximum and average speed per repetition. Time from the start of the execution by the athlete and allows the control of the recovery.
Tablet/Screen 2: The recovery time and the average speed level that the athlete reached in the repetition is maintained. A curve profile is added with the speed oscillation during the repetition.
Tablet/Screen 3: Important to regulate the training volume. It allows to train on speed by controlling the volume of repetitions done. A percentage of decrease on the speed is set and the maximum speed is used as a measurement variable.
For more information, our technical director will give you the necessary indications to start training with your CRAB EV-1 now.

TECHNICAL CHARACTERISTICS

  • Dimensions:
    E1: 870 x 510 x 410 mm
    M1: 870 x 510 x 380 mm
  • Packing dimensions (E1-M1): 800 x 600 x 630 mm
  • Machine weight:
    E1: 56 kg
    M1: 45 kg
  • Machine weight with packaging:
    E1: 71 kg
    M1: 60 kg
  • Voltage / Power Watts (E1): 230V – 50/60 Hz / 20W / Special voltage 110V – 50/60 Hz / 20W
  • Plug type Connection (E1): C13
  • Connection cable (E1): Shucko to C13
  • Pulling cable length (E1-M1): 23 meters

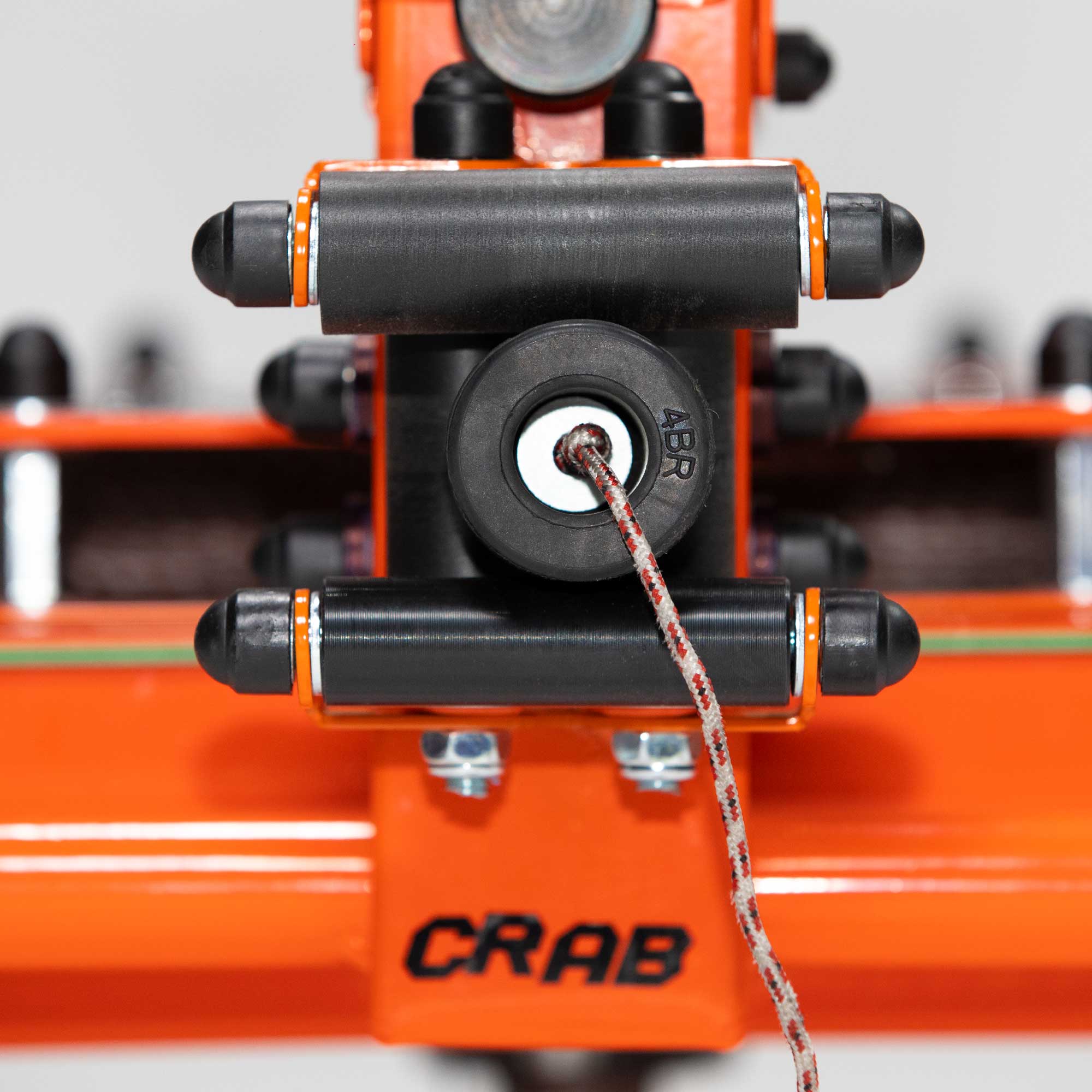

  • Pick-up (E1-M1): Retractable
  • Brake:
    E1: Electro-brake
    M1: Mecanical-brake
  • Transport (E1-M1): Wheels and handle
  • Working Range:
    E1: Min 3kg (6,6 Lb)/Max 60 kg (132 Lb)
    M1: Min 4kg (8,8 Lb)/Max 40 kg (88 Lb)

ACCESSORIES

BATTLE4RUN

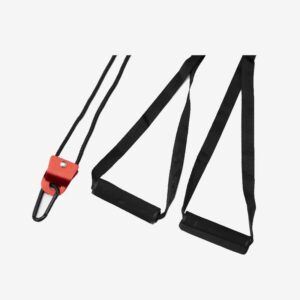

Harness

This harness will allow you to attach the CRAB to your waist or torso when training sprints (both forward and backwards) and direction changes.

BATTLE4RUN

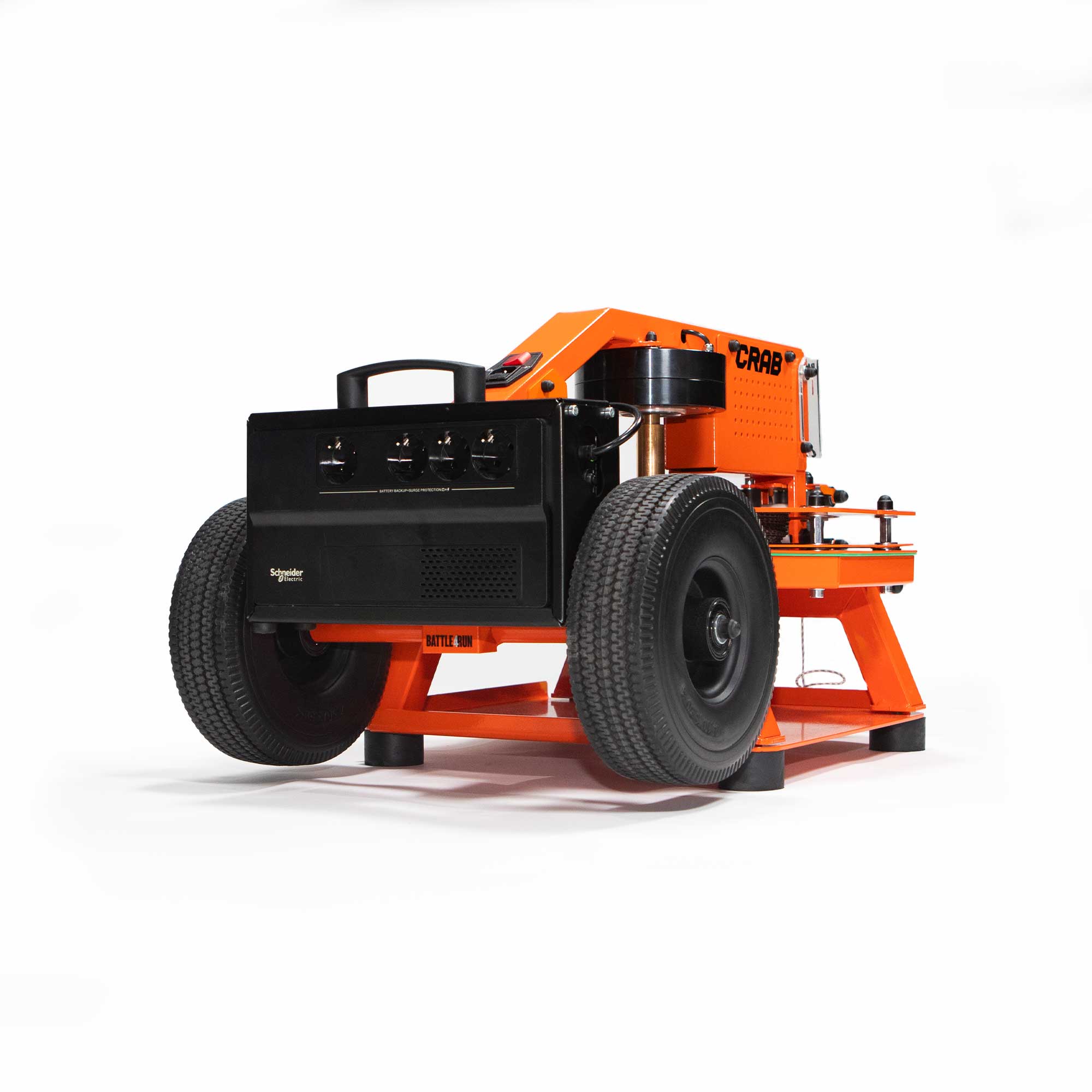

BATTERY

Portable battery that is easily removed and attached to the machine. A fully charged battery will provide up to 4 hours of continuous use without connecting to an electrical supply. Sold separately.

Over the years, when it is necessary to change the CRAB rope (E1-M1), you can do it yourself. For this purpose, we have prepared an explanatory video with step-by-step instructions on how to do it.

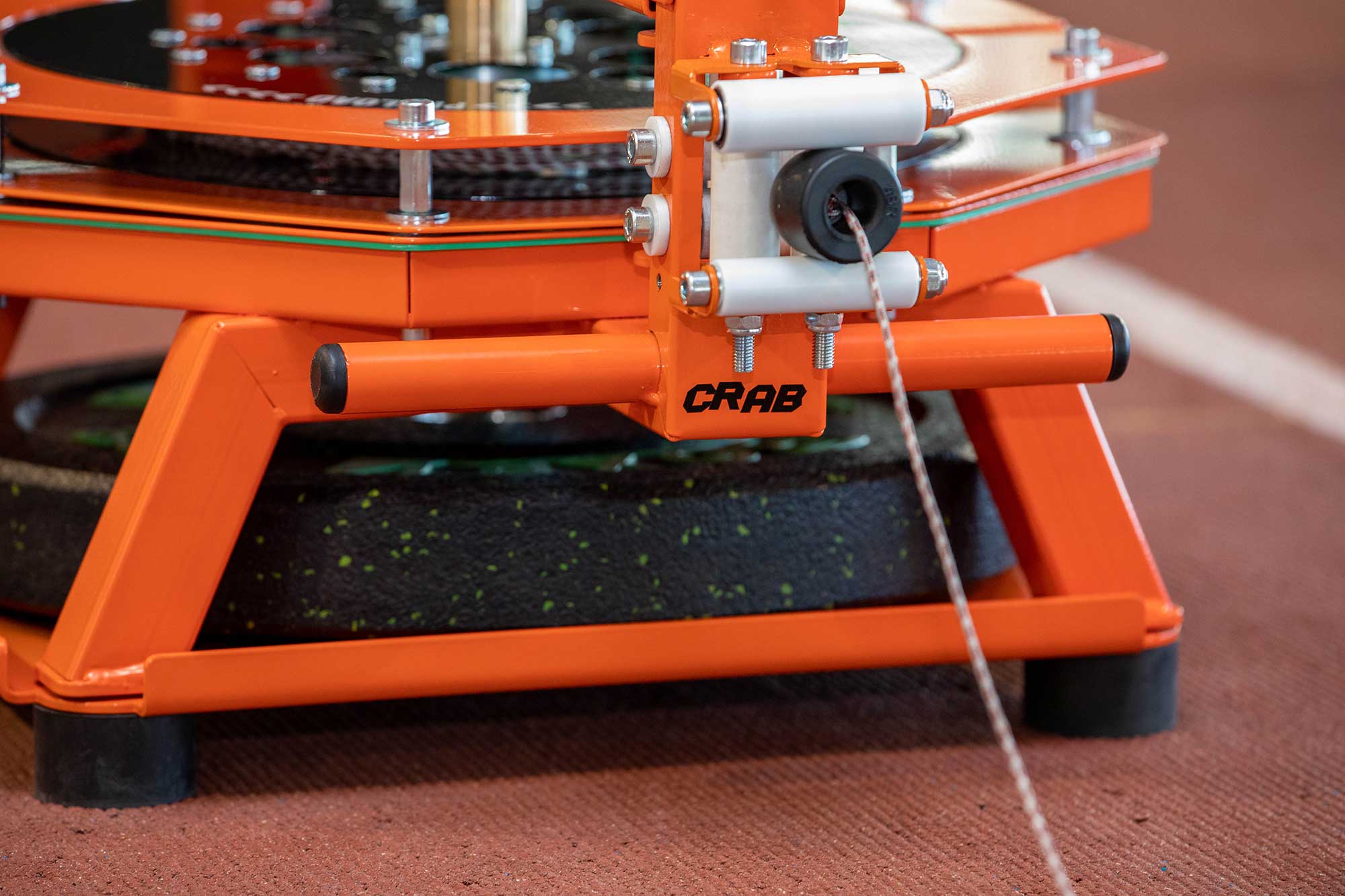

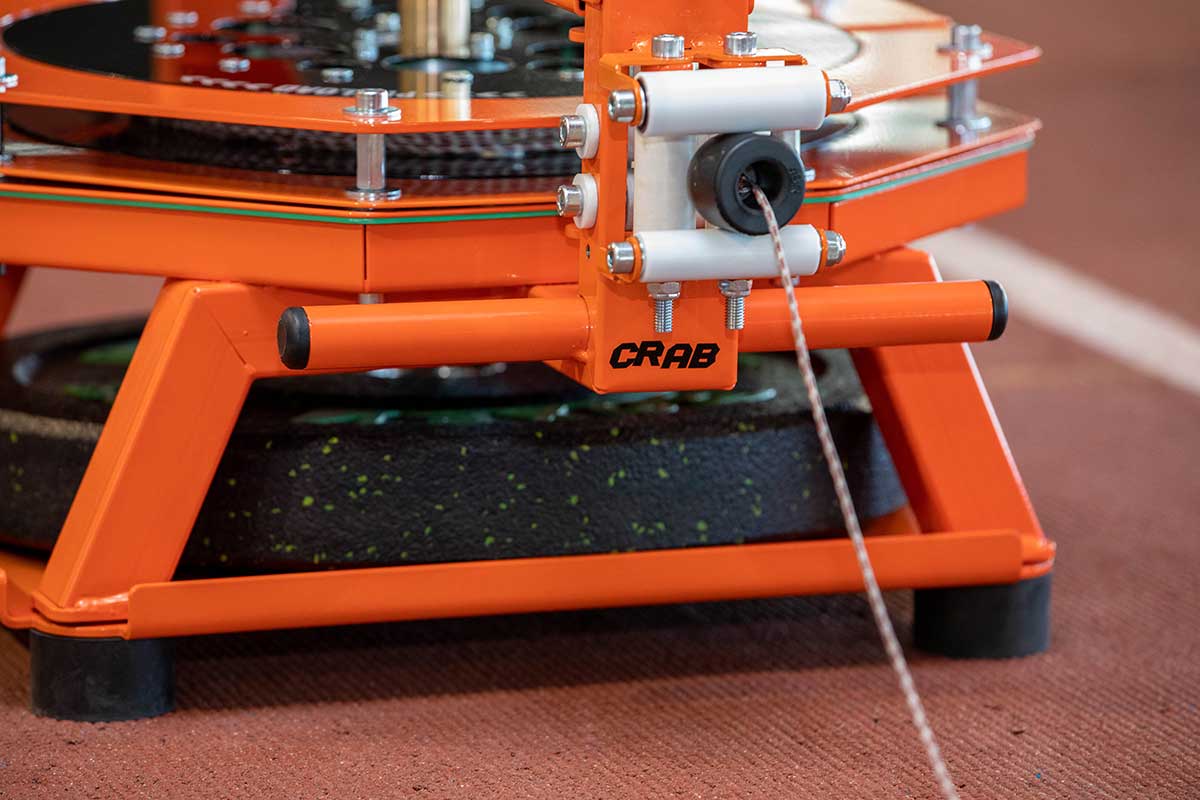

Another aspect to highlight of the CRAB (E1-M1) is that it rides on soft rubber legs that provide a high grip to the ground. In addition, in its lower part there is a storage area or platform to introduce weight or load, increasing even more this grip of the machine to the working surface.

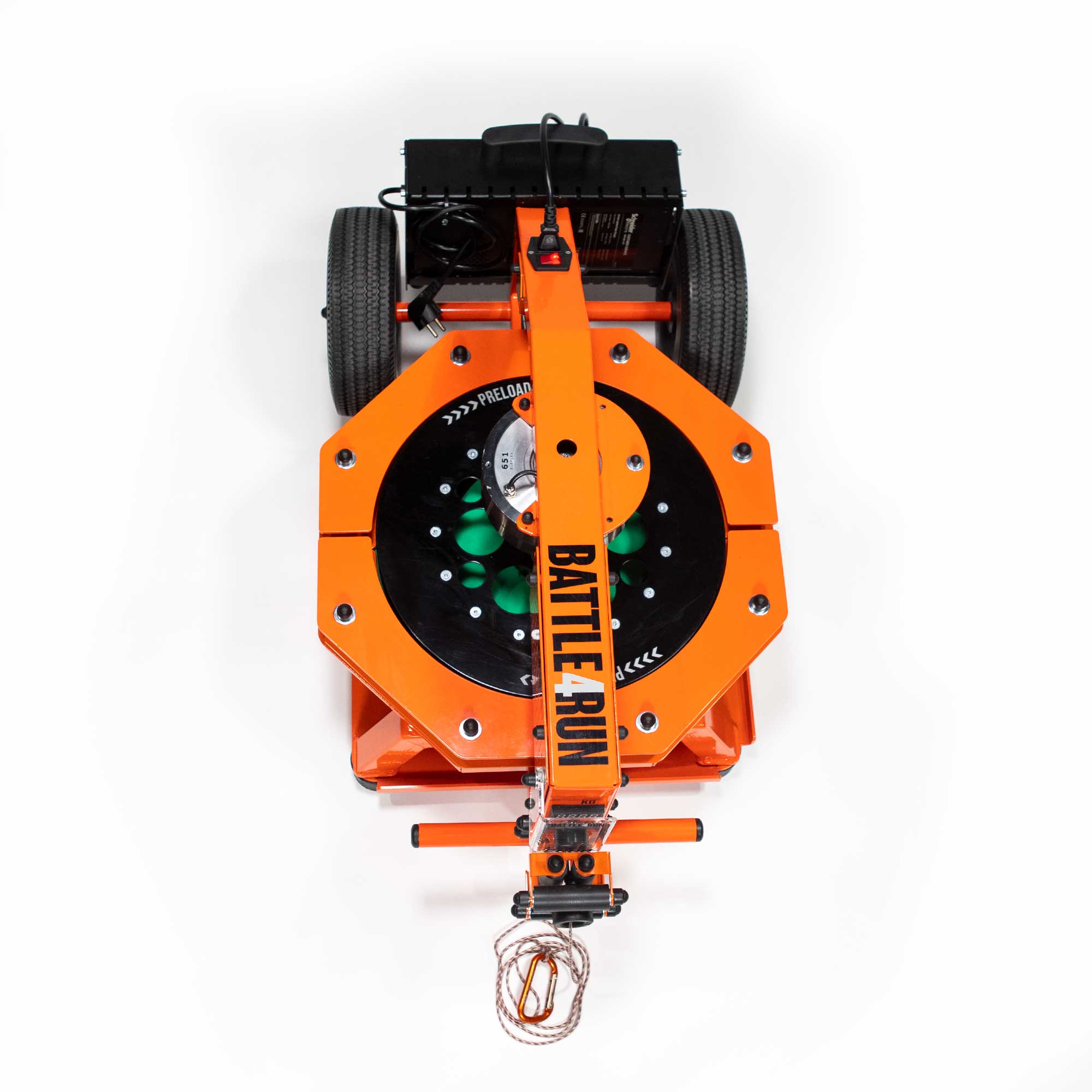

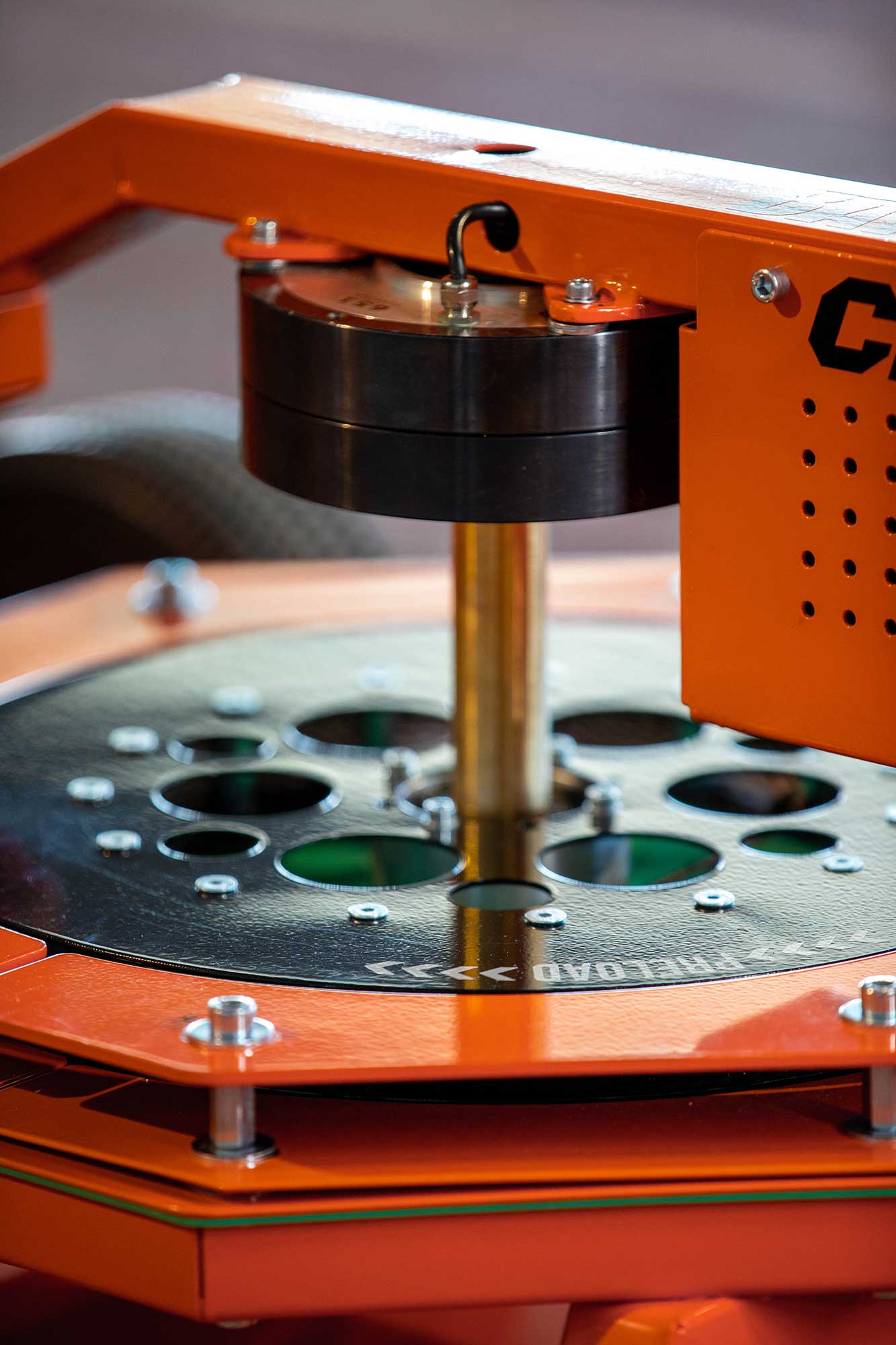

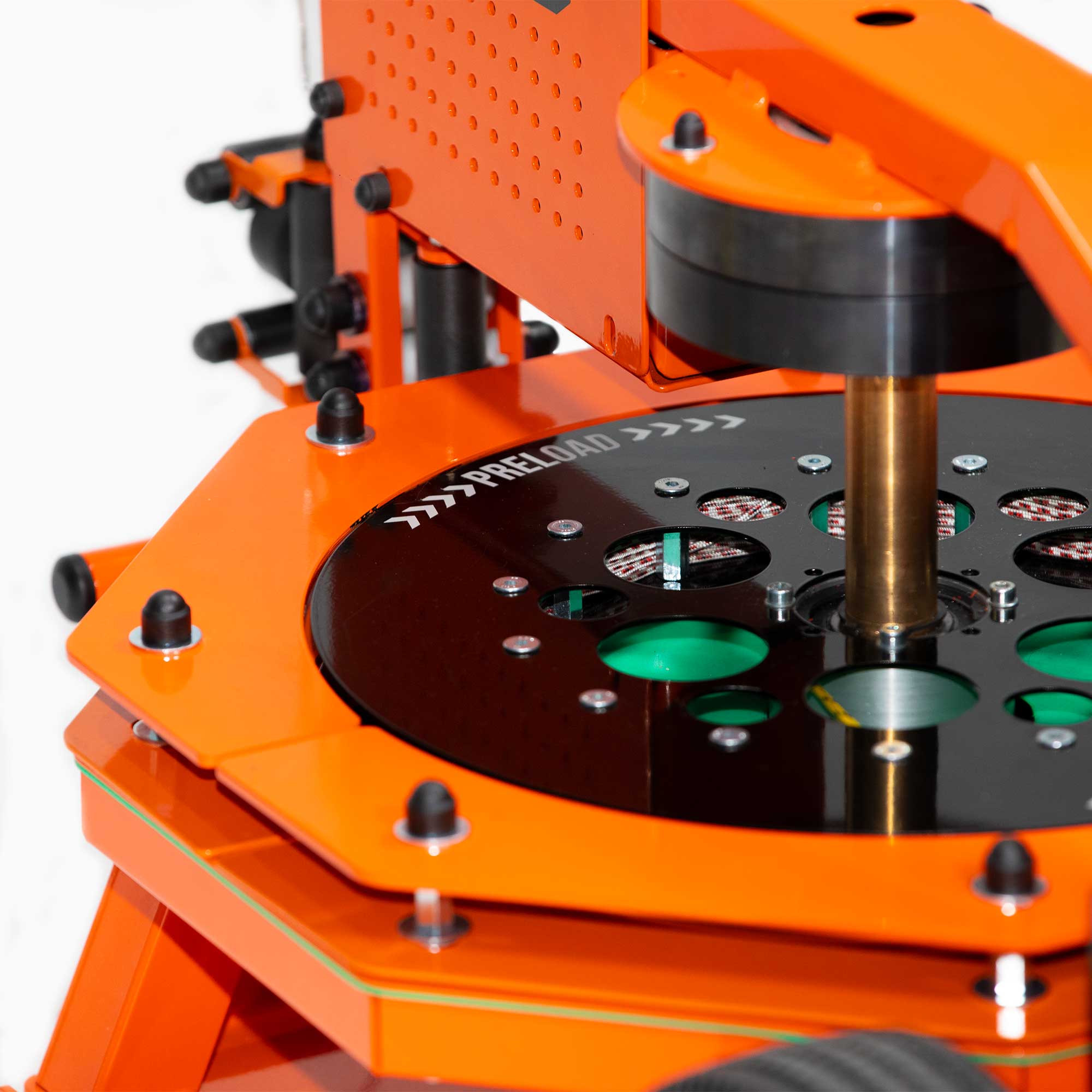

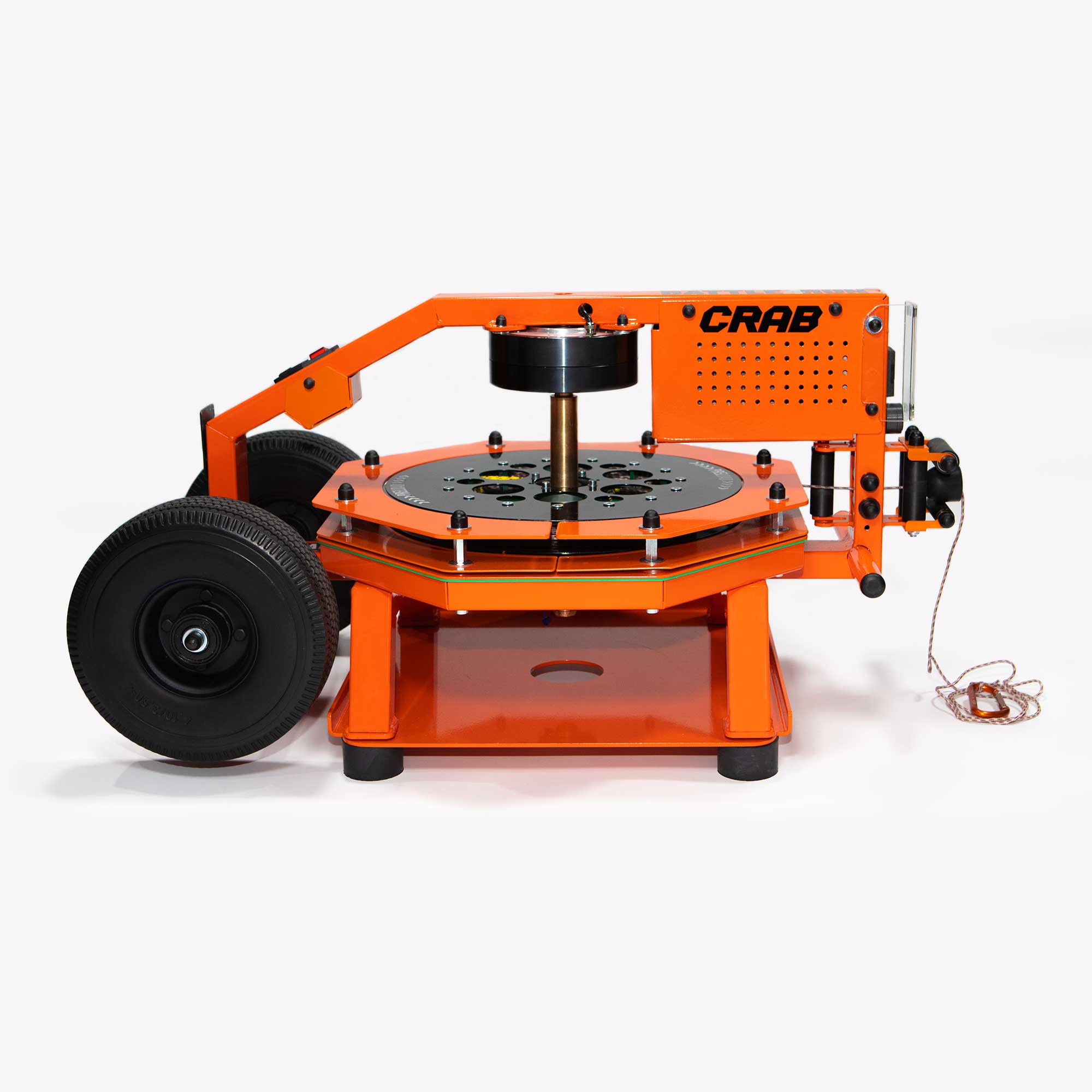

GALLERY
